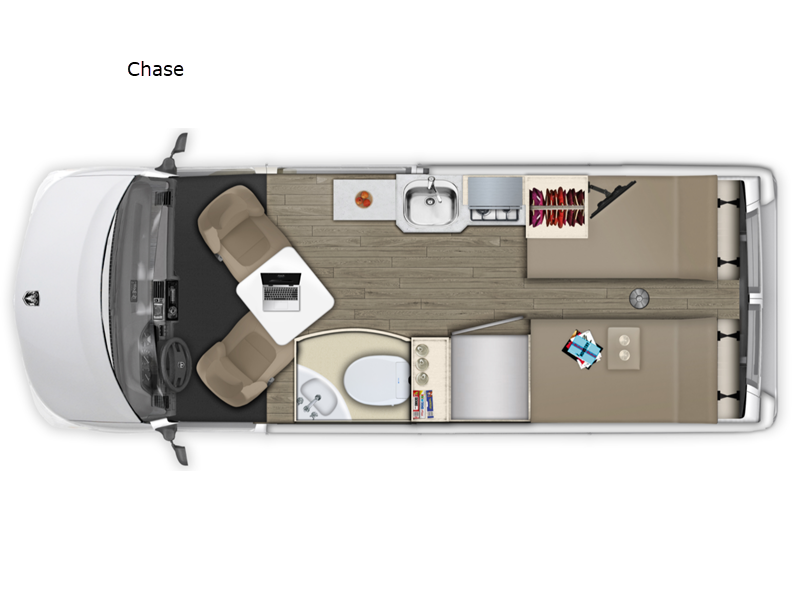

Chase Floorplan
Specifications
Sleeps | 2 | Length | 20 ft 9 in |
Ext Width | 6 ft 11 in | Ext Height | 9 ft 5 in |
Int Height | 6 ft 2 in | Hitch Weight | 3500 lbs |
GVWR | 9350 lbs | Cargo Capacity | 1660 lbs |
Fresh Water Capacity | 37 gals | Grey Water Capacity | 14 gals |
Black Water Capacity | 8.5 gals | Tire Size | LT225/75R16E Black Wall |
Furnace BTU | 16000 btu | Fuel Type | Gasoline |
Miles | 3933 | Engine | 3.6L V6 24 Valve |
Chassis | Ram ProMaster 3500 Extended Van | Horsepower | 280 hp |
Wheelbase | 159 in | Torque | 260 ft-lb |
Refrigerator Type | 12V | Refrigerator Size | 5 cu ft |
Cooktop Burners | 2 | Number of Awnings | 1 |
LP Tank Capacity | 5.9 gals | Water Heater Type | Instant 36K BTU with Bypass |
AC BTU | 11000 btu | TV Info | Coach 24" Smart TV |
Awning Info | 13' Power | Gross Combined Weight | 11500 lbs |
Shower Type | Wet/Bath Shower | Electrical Service | 30 amp |
VIN | 3C6MRVJGXME557292 |
Description
Roadtrek Class B gas motorhome Chase highlights:
- Pantry Slide
- 24" Smart TV
- Side-Facing Rear Power Sofas
- Microwave Oven
- Swivel Captain's Seats
Chase your outdoor excursions in this comfortable motorhome for two! You will find side-facing rear power sofas that can convert to twin beds or a king-size bed for your comfort. You can prepare at-home meals in the galley that features a two-burner propane stove, a 5-cu. ft. refrigerator, plus a counter extension with a charging station for your tablet or phone. After you've freshened up in the convenient wet bath, head outdoors for the day to enjoy the sunshine. When you return, you can make popcorn in the microwave oven and watch a movie on the 24" Smart TV!
The Roadtrek Class B gas motorhomes are built upon the stylish Ram ProMaster chassis with a 3.6L V6 gas engine to power your trips near and far. The rearview backup camera, the stability program, and the Uconnect 3 with navigation and a 5" touchscreen will make the drive just as sweet as the destination. Each model includes a 12V refrigerator, a two-burner recessed propane stove with a flush cover and built-in igniter, and ample storage space for all your belongings. The instant hot water system with 36,000 BTU will provide hot water when you need it, and the 16,000 BTU propane automatic furnace will keep you warm if you travel year around.
Features
Standard Features (2022)
***PLEASE NOTE: Features and Options separated by model below
-------------------------------------------------------
ZION
Coach Features
- Air conditioner - 110 V, 11,000 BTU roof mount
- 13' power awning
- Bathroom - Fully enclosed with sink, shower and toilet
- Batteries - 400 AMP lithium battery system
- Detectors - Smoke, propane and CO
- External power connection - 110 V / 30 AMP with detachable power cord
- Firefly Coach Control System - Firefly coach control system monitors water, propane, battery charge levels, battery disconnect & generator hour meter
- Folding Mattress (for front cab sleeping) - Single folding mattress for sleeping across the front two captain seats (33" width x 70" length) (Optional)
- Furnace - Propane automatic, 16,000 BTU
- Generator – under-hood
- Kitchen Galley - Solid surface countertop with flip up extension, stainless steel sink with gooseneck faucet and flush cover, two-burner propane stove with flush cover
- Lagun Adjustable Table (Front & Rear Mount) (Optional)
- Microwave oven - 110 V, 20 L/0.7 cu. ft., 700W
- Outdoor shower
- Power inverter - 12/110 V, 3,000 W Sine Wave - Includes power converter with charger
- Propane tank - 22 L / 5.9 U.S. gal.
- Rear power sofa – forward facing - Forward facing 12 V rear power sofa with leatherette upholstery and three seat belts. Easily converts to twins or king size bed. (Optional)
- Rear power sofa – side facing - Side facing 12 V rear power sofa with leatherette upholstery, converts to twins or king size bed
- Refrigerator - 12 V, 5.0 cu. ft.
- Screen package - Heavy duty, magnetic bug screen for rear and passenger sliding door
- Sewage disposal system - 12 V macerator sewage pump and gravity dump
- Solar panels - 330 watts
- Stove – induction - 110V flush mounted one burner Inductive Cooktop (Optional)
- Stove – propane - Two burner recessed with flush cover and built-in igniter
- Television - 24" Smart TV on rotating bracket
- Water system - Instant hot water system, 36,000 BTU on demand with bypass
Chassis Features
- Airbag - Driver and passenger
- Alternator - 220 AMP
- Anti-Lock Brakes (ABS)
- Axle – rear - 3.86 ratio
- Battery - 800 AMP
- Camera – rearview backup
- Climate control
- Cruise control
- Engine - 3.6 L gas, V6, 24 valve
- Power - 280 HP/209 kW
- Power steps for front cab doors
- Radio - Uconnect 5 infotainment software with Navigation and 10" touch screen, GPS with connected travel & traffic, Bluetooth, AM/FM/SiriusXM/USB/aux, Voice command and steering wheel controls
- Sumo Springs (rear only) - SumoSprings® are a patented suspension product designed to enhance load carrying ability, stabilize sway, and improve overall driver control and ride comfort. (Optional)
- Receiver - Class IV with wiring for trailer lights
- Stability program - Electronic stability control, Rear park assist, Rearview Auto Dim Digital Display Mirror, Rear cross path detection, blind spot monitoring, Cruise control
- Tire inflation kit
- Tires - LT225/75R16E black wall
- Torque - 352 Nm/260 lb.-ft. @6400 RPM
- Thule accessory pack - Package includes Thule bike rack, roof rack and telescopic ladder (Optional)
- Transmission - Automatic 9-speed 62 TE
- Wheels - 16" polished aluminum
- Bright White exterior (Optional)
- Granite Metallic exterior (Optional)
- Sandstone Pearl exterior (Optional)
- Silver Metallic exterior (Optional)
-------------------------------------------------
ZION SRT
Coach Features
- Air conditioner - 110 V, 11,000 BTU roof mount
- 11' power awning
- Bathroom - Fully enclosed with sink, shower and toilet
- Batteries - 400 AMP Lithium
- Detectors - Smoke, propane and CO
- External power connection - 110 V/30 AMP with detachable power cord
- Firefly Coach Control System - Firefly coach control system monitors water, propane, battery charge levels, battery disconnect & generator hour meter
- Folding Mattress (for front cab sleeping) - Single folding mattress for sleeping across the front two captain seats (33" width x 70" length) (Optional)
- Furnace - Propane automatic, 16,000 BTU
- Generator – under-hood
- Kitchen Galley - Solid surface countertop with flip up extension, stainless steel sink with gooseneck faucet and flush cover , two-burner propane stove with flush cover
- Lagun Adjustable Table (Front & Rear Mount) (Optional)
- Microwave oven - 110 V, 20 L/ 0.7 cu. ft., 700W
- Outdoor shower
- Power inverter - 12/110 V, 3,000 W Sine Wave Inverter - Includes power converter with charger
- Propane tank - 22 L/5.9 U.S. gal.
- Rear power sofa – forward facing - Forward facing 12 V rear power sofa with three seat belts. Easily converts to a queen size bed.
- Refrigerator - 12 V, 5.0 cu. ft.
- Screen package - Heavy duty magnetic, pet friendly bug screen for rear and sliding passenger door
- Sewage disposal system - 12 V macerator sewage pump and gravity dump
- Solar panels - 330 watts
- Stove – induction - 110V Flush mounted one burner inductive cooktop (Optional)
- Stove – propane - Two burner recessed with flush cover and built in igniter
- Television - 24" Smart TV on rotating bracket
- Water system - Instant hot water system, 36,000 BTU with bypass
Chassis Features
- Airbag - Driver and passenger
- Alternator - 220 AMP
- Anti-Lock Brakes (ABS)
- Axle – rear - 3.86 ratio
- Battery - 800 AMP
- Camera – rearview backup
- Climate control
- Cruise control
- Engine - 3.6 L gas, V6, 24 valve
- Power - 280 HP/209 kW
- Power steps for front cab doors
- Radio - Uconnect 5 infotainment software with Navigation and 10" touch screen, GPS with connected travel & traffic, Bluetooth, AM/FM/SiriusXM/USB/aux, Voice command and steering wheel controls
- Sumo Springs (rear only) (Optional)
- Receiver - Class IV with wiring for trailer lights
- Stability program - Electronic stability control, Rear park assist, Rearview Auto Dim Digital Display Mirror, Rear cross path detection, blind spot monitoring, Cruise control
- Tire inflation kit
- Tires - LT225/75R16E black wall
- Torque - 352 Nm/260 lb.-ft. @ 6,400 RPM
- Thule accessory pack (Optional)
- Transmission - Automatic 9-speed 62 TE
- Wheels - 16" polished aluminum
- Bright White exterior (Optional)
- Granite Metallic exterior (Optional)
- Sandstone Pearl exterior (Optional)
- Silver Metallic exterior (Optional)
----------------------------------------------------
SS AGILE
Coach Features
- Air conditioner - 110 V, 11,000 BTU roof mount
- 9’ 10” power awning
- Bathroom - Fully enclosed with toilet and shower
- Batteries - 400 AMP Lithium battery system
- Detectors - Smoke, propane and CO
- External power connection - 110 V/30 AMP with detachable power cord
- Firefly Coach Control System - Firefly coach control system monitors water, propane, battery charge levels, battery disconnect & generator hour meter
- Folding Mattress (for front cab sleeping) - Single folding mattress for sleeping across the front two captain seats (22" width x 76" length) (Optional)
- Furnace - Propane automatic, 16,000 BTU
- Generator – under-hood - 12 V, 280 AMP, 3,360 W
- Kitchen Galley - Solid surface countertop with flip up extension, stainless steel sink with gooseneck faucet and flush cover , two-burner propane stove with flush cover
- Lagun Adjustable Table (Front & Rear Mount) (Optional)
- Microwave oven - 110 V, 28 L/1.0 cu. ft., 1,800 W convection/1,000 W microwave
- Outdoor shower
- Propane tank - 60 L/16 U.S. gal., 70 lbs.
- Refrigerator - 12 V/110 V compressor driven with thermostat, 3.1 cu. ft.
- Screen package - Heavy duty, magnetic bug screen for rear and passenger sliding door
- Sewage disposal system - 12 V macerator sewage pump
- Solar panels - 330 watts
- Stove – induction - 110V flush mounted one burner Inductive Cooktop (Optional)
- Stove – propane - Two burner, recessed with flush cover and built in igniter
- Television - 24" Smart TV on rotating bracket
- Water heater - Tankless Water Heater, 42,000 BTU
- Water system - On-demand 12 V with water pump
Chassis Features
- 4×4 – Sprinter - On-demand all-wheel drive and manually selectable reduction gear with expanded adaptive electronic aids (Optional)
- Airbag - Driver, passenger and thorax
- Alternator - 14 V/200 AMP
- Anti-Lock Brakes (ABS)
- Axle – rear - 3.92 ratio
- Battery - 850 AMP
- Camera – rearview backup
- Climate control - Electronic with glove box cooler
- Cooling – transmission oil - External
- Cruise control
- Engine - 3.0L CRD V6 turbo diesel BlueTec?
- Headlights – automatic on/off
- Heated Seats - Heated front driver & passenger seats
- Power - 190 HP/141 kW
- Radio - GPS Navigation, 10.25" multi-media display, Android Auto, Apple Car Play, Blu-tooth interface, Satellite radio
- Receiver - Class III
- Stability program - Active brake assist, Electronic parking brake, Active distance assist, Active lane keeping assist, Attention assist, Blind spot assist
- Theft deterrent system
- Tilt steering - Tilt and telescopic steering wheel
- Tire inflation kit
- Tires - LT245/75R16E black wall
- Torque - 440 Nm/325 lb.-ft.
- Traction control
- Transmission - Automatic 7-speed
- Wheels - 16" polished aluminum
- Wiring harness for towing - E40 wire harness and 7 pin connector
- Selenite Grey exterior (Optional)
- Grey White exterior (Optional)
- Silver Ice exterior - Silver Ice paint (Optional)
----------------------------------------------------
PLAY
Coach Features
- Air conditioner - 110 V, 11,000 BTU roof mount
- 13' power awning
- Bathroom - Fully enclosed with sink, shower and toilet
- Batteries - 400 AGM battery system
- Detectors - Smoke, propane and CO
- External power connection - 110 V / 30 AMP with detachable power cord
- Folding Mattress (for front cab sleeping) Single folding mattress for sleeping across the front two captain seats (33" width x 70" length) (Optional)
- Furnace - Propane automatic, 16,000 BTU
- Generator – under-hood
- Kitchen Galley - Pre-formed countertop with flip up extension, stainless steel fold down sink with flush cover and two-burner propane stove with flush cover
- Microwave oven - 110 V, 20 L/0.7 cu. ft., 700W
- Monitor panel - Water, propane, battery charge levels & battery disconnect
- Outdoor shower
- Power inverter - 12/110 V, 3,000 W Sine Wave - Includes power converter with charger
- Propane tank - 22 L / 5.9 U.S. gal.
- Rear power sofa – forward facing (Optional)
- Refrigerator - 12 V, 5.0 cu. ft.
- Screen package - Heavy duty, magnetic bug screen for rear and passenger sliding door
- Sewage disposal system - 12 V macerator sewage pump and gravity dump
- Stove – propane - Two burner recessed with flush cover and built-in igniter
- Water system - Instant hot water system, 36,000 BTU with bypass
Chassis Features
- Airbag - Driver and passenger
- Alternator - 220 AMP
- Anti-Lock Brakes (ABS)
- Axle – rear - 3.86 ratio
- Battery - 800 AMP
- Camera – rearview backup
- Climate control
- Cruise control
- Engine - 3.6 L gas, V6, 24 valve
- Power - 280 HP/209 kW
- Radio - Uconnect 5 infotainment software with Navigation and 10" touch screen, GPS with connected travel & traffic, Bluetooth, AM/FM/SiriusXM/USB/aux, Voice command and steering wheel controls
- Receiver - Class IV with wiring for trailer lights
- Stability program - Electronic stability control, Rear park assist, Rearview Auto Dim Digital Display Mirror, Rear cross path detection, blind spot monitoring, Cruise control
- Tire inflation kit
- Tires - LT225/75R16E black wall
- Torque - 352 Nm/260 lb.-ft. @6400 RPM
- Transmission - Automatic 9-speed 62 TE
- Wheels – 16" polished aluminum
- Bright White exterior (Optional)
- Granite Metallic exterior (Optional)
- Sandstone Pearl exterior (Optional)
- Silver Metallic exterior (Optional)
-----------------------------------------------------
CHASE
Coach Features
- Air conditioner - 110 V, 11,000 BTU roof mount
- 13' power awning
- Bathroom - Fully enclosed with sink, shower and toilet
- Batteries - 400 AMP lithium battery system
- Detectors - Smoke, propane and CO
- External power connection - 110 V / 30 AMP with detachable power cord
- Firefly Coach Control System - Firefly coach control system monitors water, propane, battery charge levels, battery disconnect & generator hour meter
- Folding Mattress (for front cab sleeping) - Single folding mattress for sleeping across the front two captain seats (33" width x 70" length) (Optional)
- Furnace - Propane automatic, 16,000 BTU
- Generator – under-hood
- Kitchen Galley - Solid surface countertop with flip up extension, stainless steel sink with gooseneck faucet and flush cover , two-burner propane stove with flush cover
- Lagun Adjustable Table (Front & Rear Mount) (Optional)
- Microwave oven - 110 V, 20 L/0.7 cu. ft., 700W
- Outdoor shower
- Power inverter - 12/110 V, 3,000 W Sine Wave - Includes power converter with charger
- Propane tank - 22 L / 5.9 U.S. gal.
- Refrigerator - 12 V, 5.0 cu. ft.
- Screen package - Heavy duty, magnetic bug screens for rear and passenger sliding door
- Sewage disposal system - 12 V macerator sewage pump and gravity dump
- Solar panels - 330 watts
- Stove – induction - 110V flush mounted one burner Inductive Cooktop (Optional)
- Stove – propane - Two burner recessed with flush cover and built-in igniter
- Television - 24" Smart TV on rotating bracket
- Water system - Instant hot water system, 36,000 BTU on demand with bypass
Chassis Features
- Airbag - Driver and passenger
- Alternator - 220 AMP
- Anti-Lock Brakes (ABS)
- Axle – rear - 3.86 ratio
- Battery - 800 AMP
- Camera – rearview backup
- Climate control
- Cruise control
- Engine - 3.6 L gas, V6, 24 valve
- Power - 280 HP/209 kW
- Power steps for front cab doors
- Radio - Uconnect 5 infotainment software with Navigation and 10" touch screen, GPS with connected travel & traffic, Bluetooth, AM/FM/SiriusXM/USB/aux, Voice command and steering wheel controls
- Sumo Springs (rear only) - SumoSprings® are a patented suspension product designed to enhance load carrying ability, stabilize sway, and improve overall driver control and ride comfort (Optional)
- Receiver - Class IV with wiring for trailer lights
- Stability program - Electronic stability control, Rear park assist, Rearview Auto Dim Digital Display Mirror, Rear cross path detection, blind spot monitoring, Cruise control
- Tire inflation kit
- Tires - LT225/75R16E black wall
- Torque - 352 Nm/260 lb.-ft. @6400 RPM
- Thule accessory pack - Package includes Thule bike rack, roof rack and telescopic ladder (Optional)
- Transmission - Automatic 9-speed 62 TE
- Wheels - 16" polished aluminum
- Bright White exterior (Optional)
- Granite Metallic exterior (Optional)
- Sandstone Pearl exterior (Optional)
- Silver Metallic exterior (Optional)
------------------------------------------------------
ZION SLUMBER
Coach Features
- Air conditioner - 110 V, 13,500 BTU roof mount
- 11' power awning
- Bathroom - Fully enclosed with toilet, sink and shower
- Batteries - 400 AMP Lithium Battery System
- Detectors - Smoke, propane and CO
- External power connection - 110 V / 30 AMP with detachable power cord
- Firefly Coach Control System - Firefly coach control system monitors water, propane, battery charge levels, battery disconnect & generator hour meter
- Folding Mattress (for front cab sleeping) - Single folding mattress for sleeping across the front two captain seats (33" width x 70" length) (Optional)
- Furnace - Propane automatic, 16,000 BTU
- Generator – under-hood
- Kitchen Galley - Solid surface countertop with flip up extension, stainless steel sink with gooseneck faucet and flush cover , two-burner propane stove with flush cover
- Lagun Adjustable Table (Front & Rear Mount) (Optional)
- Microwave oven - 110 V, 20 L/0.7 cu. ft., 700W
- Outdoor shower
- Power inverter - 12/110 V, 3,000 W Sine Wave - Includes power converter with charger
- Propane tank - 22 L / 5.9 U.S. gal.
- Rear power sofa – forward facing - Forward facing 12 V rear power sofa with leatherette upholstery and three seat belts. Easily converts to twins or king size bed (Optional)
- Rear power sofa – side facing
- Refrigerator - 12 V, 5.0 cu. ft.
- Screen package - Heavy duty magnetic bug screen for rear and passenger sliding door
- Sewage disposal system - 12 V macerator sewage pump and gravity dump
- Stove – induction - 110V flush mounted one burner Inductive Cooktop (Optional)
- Stove – propane - Two burner recessed with flush cover and built-in igniter
- Television - 24" Smart TV on rotating bracket
- Water system - Instant hot water system, 36,000 BTU on demand with bypass
Chassis Features
- Airbag - Driver and passenger
- Alternator - 220 AMP
- Anti-Lock Brakes (ABS)
- Axle – rear - 3.86 ratio
- Battery - 800 AMP
- Camera – rearview backup
- Climate control
- Cruise control
- Engine - 3.6 L gas, V6, 24 valve
- Power - 280 HP/209 kW
- Power steps for front cab doors
- Radio - Uconnect 5 infotainment software with Navigation and 10" touch screen, GPS with connected travel & traffic, Bluetooth, AM/FM/SiriusXM/USB/aux, Voice command and steering wheel controls
- Sumo Springs (rear only) - SumoSprings® are a patented suspension product designed to enhance load carrying ability, stabilize sway, and improve overall driver control and ride comfort. (Optional)
- Receiver - Class IV with wiring for trailer lights
- Stability program - Electronic stability control, Rear park assist, Rearview Auto Dim Digital Display Mirror, Rear cross path detection, blind spot monitoring, Cruise control
- Tire inflation kit
- Tires - LT225/75R16E black wall
- Torque - 352 Nm/260 lb.-ft. @6400 RPM
- Transmission - Automatic 9-speed 62 TE
- Wheels - 16" polished aluminum
- Bright White exterior (Optional)
- Granite Metallic exterior (Optional)
- Sandstone Pearl exterior (Optional)
- Silver Metallic exterior (Optional)
--------------------------------------------------
PLAY SRT
Coach Features
- Air conditioner - 110V, 11,000 BTU roof mount
- 11' power awning
- Bathroom - Fully enclosed with toilet, sink and shower
- Batteries - 400 AGM battery system
- Detectors - Smoke, propane and CO
- External power connection - 110 V / 30 AMP with detachable power cord
- Folding Mattress (for front cab sleeping) - Single folding mattress for sleeping across the front two captain seats (33" width x 70" length) (Optional)
- Furnace - Propane automatic, 16,000 BTU
- Generator – under-hood
- Kitchen Galley - Pre-formed countertop with flip up extension, stainless steel fold down sink with flush cover and two-burner propane stove with flush cover
- Microwave oven - 110 V, 20 L/0.7 cu. ft., 700W
- Monitor panel - Water, propane, battery charge levels & battery disconnect
- Outdoor shower
- Power inverter - 12/110 V, 3,000 W Sine Wave - Includes power converter with charger
- Propane tank - 22 L / 5.9 U.S. gal.
- Rear power sofa – forward facing
- Refrigerator - 12 V, 5.0 cu. ft.
- Screen package - Heavy duty, magnetic bug screen for rear and passenger sliding door
- Sewage disposal system - 12 V macerator sewage pump and gravity dump
- Stove – propane - Two burner recessed with flush cover and built-in igniter
- Water system - Instant hot water system, 36,000 BTU with bypass
Chassis Features
- Airbag - Driver and passenger
- Alternator - 220 AMP
- Anti-Lock Brakes (ABS)
- Axle – rear - 3.86 ratio
- Battery - 800 AMP
- Camera – rearview backup
- Climate control
- Cruise control
- Engine - 3.6 L gas, V6, 24 valve
- Power - 280 HP/209 kW
- Radio - Uconnect 5 infotainment software with Navigation and 10" touch screen, GPS with connected travel & traffic, Bluetooth, AM/FM/SiriusXM/USB/aux, Voice command and steering wheel controls
- Receiver - Class IV with wiring for trailer lights
- Stability program - Electronic stability control, Rear park assist, Rearview Auto Dim Digital Display Mirror, Rear cross path detection, blind spot monitoring, Cruise control
- Tire inflation kit
- Tires - LT225/75R16E black wall
- Torque - 352 Nm/260 lb.-ft. @6400 RPM
- Transmission - Automatic 9-speed 62 TE
- Wheels - 16" polished aluminum
- Bright White exterior (Optional)
- Granite Metallic exterior (Optional)
- Sandstone Pearl exterior (Optional)
- Silver Metallic exterior (Optional)
-----------------------------------------------------
PLAY SLUMBER
Coach Features
- Air conditioner - 110 V, 13,500 BTU roof mount
- 11' power awning
- Bathroom - Fully enclosed with toilet, sink and shower
- Batteries - 400 AGM battery system
- Detectors - Smoke, propane and CO
- External power connection - 110 V / 30 AMP with detachable power cord
- Folding Mattress (for front cab sleeping) - Single folding mattress for sleeping across the front two captain seats (33" width x 70" length) (Optional)
- Furnace - Propane automatic, 16,000 BTU
- Generator – under-hood
- Kitchen Galley - Pre-formed countertop with flip up extension, stainless steel fold down sink with flush cover and two-burner propane stove with flush cover
- Microwave oven - 110 V, 20 L/0.7 cu. ft., 700W
- Monitor panel - Water, propane, battery charge levels & battery disconnect
- Outdoor shower
- Power inverter - 12/110 V, 3,000 W Sine Wave - Includes power converter with charger
- Propane tank - 22 L / 5.9 U.S. gal.
- Rear power sofa – forward facing - Forward facing 12 V rear power sofa with leatherette upholstery and three seat belts. Easily converts to twins or king size bed. (Optional)
- Refrigerator - 12 V, 5.0 cu. ft.
- Screen package - Heavy duty, magnetic bug screen for rear and passenger sliding door
- Sewage disposal system - 12 V macerator sewage pump and gravity dump
- Stove – propane - Two burner recessed with flush cover and built-in igniter
- Water system - Instant hot water system, 36,000 BTU with bypass
Chassis Features
- Airbag - Driver and passenger
- Alternator - 220 AMP
- Anti-Lock Brakes (ABS)
- Axle – rear - 3.86 ratio
- Battery - 800 AMP
- Camera – rearview backup
- Climate control
- Cruise control
- Engine - 3.6 L gas, V6, 24 valve
- Power - 280 HP/209 kW
- Radio - Uconnect 5 infotainment software with Navigation and 10" touch screen, GPS with connected travel & traffic, Bluetooth, AM/FM/SiriusXM/USB/aux, Voice command and steering wheel controls
- Receiver - Class IV with wiring for trailer lights
- Stability program - Electronic stability control, Rear park assist, Rearview Auto Dim Digital Display Mirror, Rear cross path detection, blind spot monitoring, Cruise control
- Tire inflation kit
- Tires - LT225/75R16E black wall
- Torque - 352 Nm/260 lb.-ft. @6400 RPM
- Transmission - Automatic 9-speed 62 TE
- Wheels - 16" polished aluminum
- Bright White exterior (Optional)
- Granite Metallic exterior (Optional)
- Sandstone Pearl exterior (Optional)
- Silver Metallic exterior (Optional)
Please see us for a complete list of features and available options!
All standard features and specifications are subject to change!
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to Covid19 supply chain issues, some features and options shown may be temporarily substituted or removed.
Save your favorite RVs as you browse. Begin with this one!
-
Unforgettable Experience
Like most: All went so smoothly from our first email to our going through the American Canadian borders. We can't thank all the employees of General RV enough for making this experience so unforgettable. They found lifetime clients and we will never hesitate to recommend them to anyone in Quebec looking ... More » -
So Very Happy
Like most: We went on our first trip this past weekend. It was amazing! We are so very happy with the coach we purchased!
I just want to thank Noah for all that he has done for us. We truly appreciate the friendly and helpful service he gave us. -
Extended Gratitude
Like most: We would like to extend our gratitude for all the hard work that you folks did, to make this transaction work, especially to Bill, Alan, and Evelyn. For sure we will enjoy our Big Horn unit. And again thanks to you all as well as the Service Dept. and Front Desk Dept.
Loading
General RV works hard to ensure the accuracy of all its listings however we are not responsible for any misprints, typos, or errors found in our website pages. Manufacturer-provided pictures, specifications and features may be used as needed. Inventory shown may be only a partial listing of the entire inventory. Please contact us at 888-436-7578 for availability as our inventory changes rapidly.
*All RV prices exclude tax, title, registration and fees, including documentary service fees. All payments are with approved credit through dealer lending source. Advertised monthly payment is based on 20% cash down, plus tax, title, registration and fees, at 7.99% APR for 96 months on finance amounts under $10K, at 7.99% APR for 144 months on finance amounts from $10K to $25K, at 7.99% APR for 180 months on finance amounts from $25K to $50K, and at 7.99% APR for 240 months on amounts over $50K.
