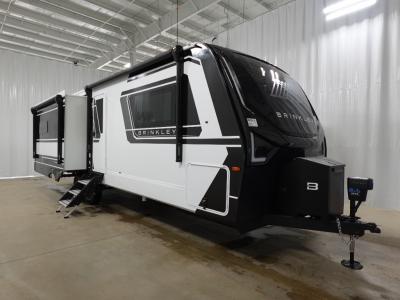

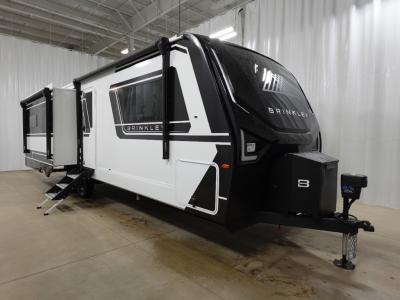

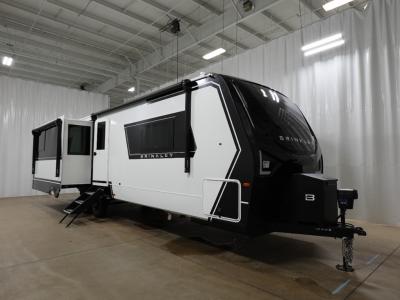

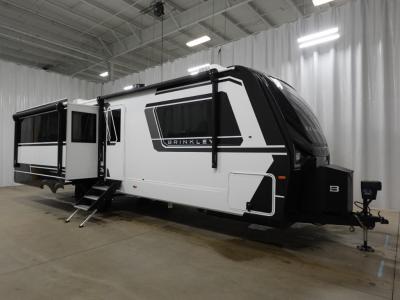

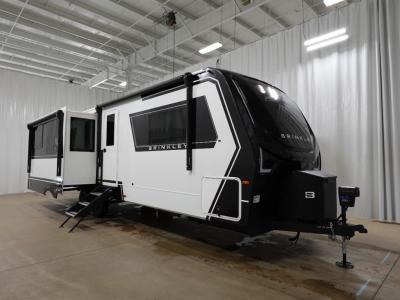

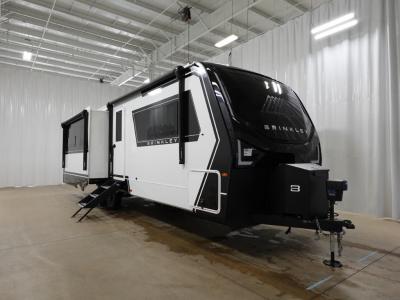

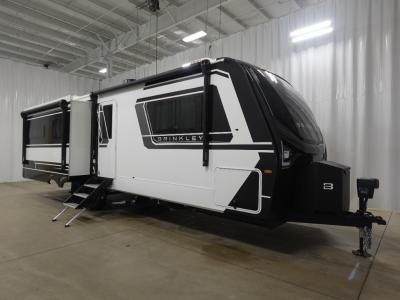

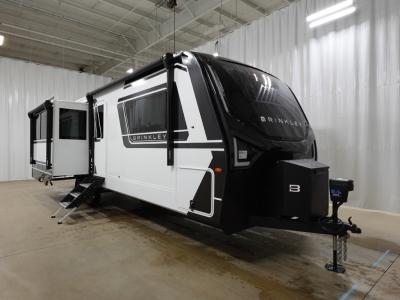

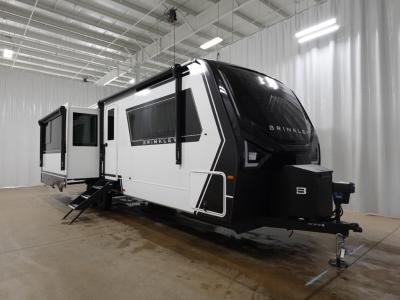

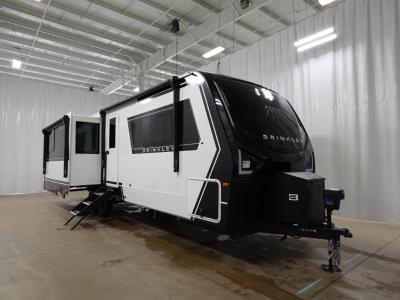

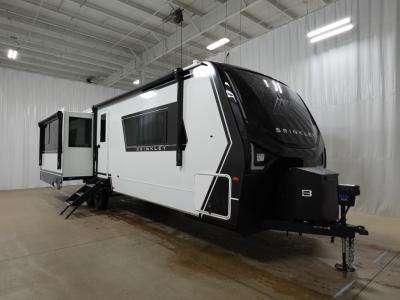

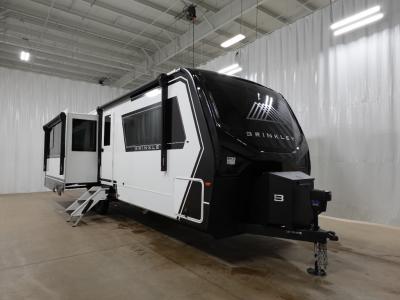

Brinkley Model Z Air Travel Trailers

Standard Features

Chassis & Suspension

• Drop Frame Chassis (Brinkley Spec & Certified)
• Road Defense Triple Powder Coated Chassis
• Premium Hankook Vantra 235/80 Load Range E 10-Ply Tires
• 16" Custom Aluminum Luxury Wheels
• Road Debris Galvanized Wheel Well Shields
• Anti-Lock Braking System (ABS) w/ Anti-Sway & Dynamic Brake Boost
• Banded Tire Pressure Monitoring System (TPMS) w/ Wireless Display
• Automatic One Touch 5-Point Leveling & Stabilization System w/ Hitch Height Memory
• Heavy Duty 6,000 lbs. Axles w/ 6,000 lbs. Leaf Springs
• Shock Absorbers
• High-Performance Road Armor™ Suspension Equalizer System
• Reinforced Axle Hangers
• Demco EZ Latch Trailer Coupler
• Upgraded 6' Coiled Breakaway Safety Cable
• MAX-Vision™ Reverse Lighting System (Includes Backup Lights & Underbody Ground Lighting)
• LED Underbody Ground Lighting
• 2" Rear Receiver Hitch w/ 4-Way Connector (300 lbs. Tongue Weight 3,000 lbs. GTW)

Exterior & Storage

• Square Euro Frameless Windows w/ 6? Openings (Industry 1st)
• Dual Pane Square Euro Frameless Windows w/ 6" Openings ($1,731) (optional)
• Sleek & Clean Styling w/ Automotive-Grade Exterior Graphics
• Automotive Front Cap, Lights, & Lenses
• Exterior Speakers w/ Bluetooth & Campside Controls
• Electric Awning(s) w/ Dotless COB Neon LED Lighting
• Off-Campside LED Flood Light
• Backup Camera & Wireless Monitor w/ Observation/Security Mode
• Winegard Air 360+ TV & FM Antenna w/ Wi-Fi Booster
• Heated & Insulated Pass-Through Storage Compartment w/ Motion Lighting & Power Outlets
• Front Pass-Through Storage Compartment:
  • Full-Width LED Strip Lighting
  • 4x Power Outlets
  • Antenna/Coax Hookup
  • Forced-Air Heated & Insulated
  • Off-Campside 'Saddle Bag' Drop-Down Storage Area
• Tough-Ply Floor & Walls in Storage Compartments
• Pet & Property Security Campside Tie-Down
• Slam Latch Baggage Doors
• Heavy-Duty Ladder w/ Secure-Transition & Weep Holes
• Custom LP & Gear Box w/ Locking Tool Storage & Battery Tray (2x Group 27)
• Rock Guard Front Protective Shields
• Deluxe Entrance Package:
  • Oversized 30"x76" Entry Door
  • Keyless Entry
  • Integrated Blackout Window Shade
  • Child/Pet Defender Screen Protector
  • Screen Assist Push Bar Opener
  • Screen Shot Automatic Screen Door Closer
  • Extra-Wide & Deep Solid Entry Steps
  • 54" Telescoping Entry Handrail (Extends to Bottom Step)

Solar, Electrical & HVAC

• 370 Watt Solar Panel (740 Watt Ready) SO Hot Feature
• 60 Amp MPPT Solar Controller (Inverter Prep & Lithium Ready)
• 18k BTU Rear Furrion Chill Cube Air Conditioner (Main)
• 18k BTU Front Furrion Chill Cube Air Conditioner (Bed & Bath)
• Brinkley Smart-Command™ Center w/ App Control
• Thermaflex® No Kink No Tear Heat Ducts
• Travel & Storage Mode Battery Disconnects
• Pre-Engineered & Assembled Wiring Harnesses, Loomed, Labeled, & Color Coded for Easy Serviceability (Segment-First)
• Wire Conduit for Aftermarket Upgrades (Roof> Interior> Basement)
• 35k BTU High-Capacity Furnace
• Detachable 50-amp Power Cord w/ Angled Connector

Plumbing & LP

• Brass Plumbing Fittings (Industry First)
• Water Shutoff Valve on ALL Fixtures
• Upgraded Holding Tanks w/ True Capacities
• Thermofoil Insulated & Heated Holding Tanks w/ Steel Cross Supports
• Electric Waste Valves w/ Indicator Light & Manual-Override (Enclosed & Heated)
• Extended Waste Hose Storage Tube
• Clear Sewer Cap w/ Lanyard
• Brinkley On-Command™ Docking & Utility Center
• 65' Retractable City Water Hose SO Hot Feature Icon Round
• 2x 90-Degree Brass Elbows for Docking Station Water Hoses
• EZ Winterization Valve in Utility Center
• Washer/Dryer Prep (Stackable or Combo)
• 2x Hot/Cold Exterior Spray Ports (Campside & Off-Campside)
• Tankless On-Demand Water Heater (144 Gallons Per Hour)
• 2x 30 lbs. LP/Propane Tanks
• LP-IQ Propane Gauge
• Exterior LP Quick Connect

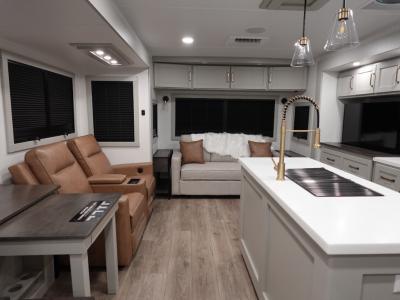

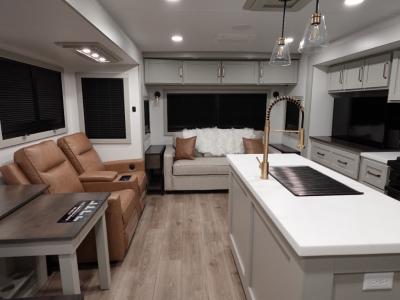

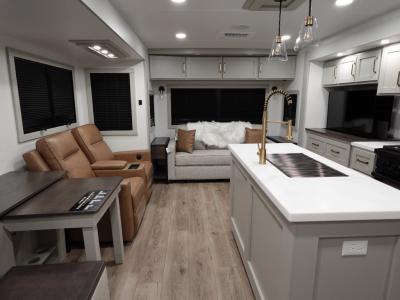

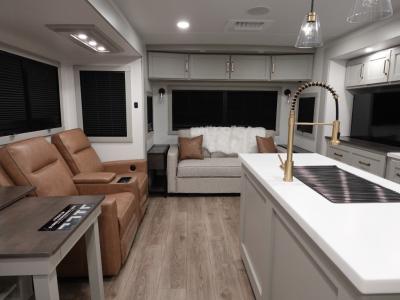

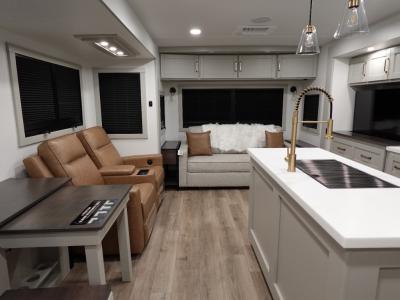

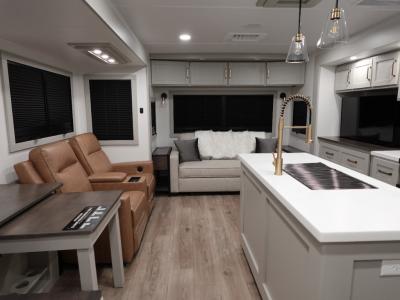

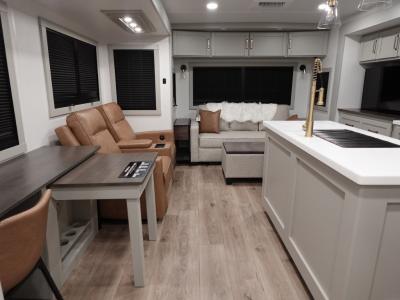

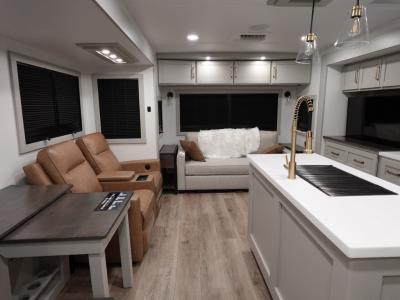

Interior & Living Spaces

• Brinkley CraftSense™ Wood Trim Construction
• DUAL Flush Floor Galley & Livingroom Slides (Segment First)
• 72.5" Slide-Out Height
• Window Integrated Day Screens & Blackout Shades w/ Reflective Insulation + Full Bug Screens
• Dimmable Living Room Lights
• 42" Smart TV & Televator (Powered TV Elevator)
• Premium Audio System w/ Bluetooth w/ Physical Controls
• Entertainment Shelf (Behind TV)
• Fireplace w/ 5,000 BTU Electric Heat
• Wall Hugger Theater Seating w/ Heat & Wireless Charging (2x Recliners)
• Desk w/ Outlets, Pencil Drawer, & Overhead Storage Cabinets
• 13 Outlets - 3 w/ USB & USB-C
• Well-Placed Outlets w/ USB & USB-C High-Speed Charging Stations
• Soft-Close Cabinet Doors & Drawers
• Pet-Friendly Package:
• Ductless Floors in Main Living Areas
• Child/Pet Defender Screen Protector
• 100% Carpet Free
• Exterior Pet & Property Security Tie-Down
• Magnetic Pet Feeder w/ Removable Bowls (Sticks to Island Base)

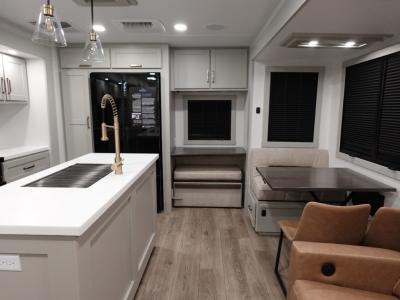

Kitchen & Dining

• Premium Residential Drawers w/ Dovetail Joints
• Residential Solid Surface Countertops
• One-Piece Steel Island Base (Super Stable)
• Sleeper Dinette w/ Storage Drawer & Indirect Mood Lighting
• Pull-Out Trash Bin w/ Utility Storage
• Stow ‘n Go Paper Towel Caddy
• Premium Residential Soft Close Cabinet Doors & Drawers
• Magnetic Cabinet & Drawer Catches
• Large Pantry w/ Adjustable Shelves & Appliance Outlet
• Second Pantry (Next to Fridge)
• 16 Cubic Feet Energy Efficient 12-Volt Refrigerator
• Residential 30" Microwave
• Farmhouse Black Stainless Steel Sink w/ Tuff Coat & Roller Cover
• Soffit & Island Base w/ Indirect Mood Light
• Maxxair Fan w/ Rain Sensor

Bathroom

• One-piece 42"x30" Molded Fiberglass Shower w/ Seat (Low-Step/Max Height)
• Marine Grade Dotless COB Neon LED Shower Lighting
• Residential Shower System w/ Head, Body, & Handheld Sprayers
• Overhead Shower Cove
• Glass Sliding Shower Door
• Space Saver Bathroom Passage Door(s)
• Lighted Bathroom Mirror
• Residential Solid Surface Countertop
• Dual Access Bathroom to Bedroom Pass Through Storage Cabinet
• Overhead Shelf
• 3 Matching Bath Hooks
• Porcelain Toilet
• Toilet Paper Holder w/ Magnetic Travel Keeper
• Maxxair Fan w/ Rain Sensor

Bedroom

• Dimmable Bedroom Lights
• Queen Bed w/ Residential 7" Memory Foam Mattress (60?x80?)
• Dual Built-in Bedside Storage Cubbies w/ Outlets & USB & USB-C Charing Ports (CPAP Ready)
• Matching Comforter & Pillow Package
• Dual Motion Activated LED Bed Lights
• Padded Headboard w/ Overhead Shelf
• Under-Bed Storage Drawers
• 2x Felt-lined Under-Bed Storage Trays
• Under-Bed Storage Space w/ Lockable In-Floor Steel Safe
• Dual Reading Sconce Lights
• Cordless Vacuum Prep w/ Closet/Wardrobe Outlet
• Dual Wardrobe Closets w/ Drawers
• 32" Smart TV
• Fireplace w/ 5,000 BTU Electric Heat (Bedroom)

Construction

• Designed by Campers & Developed with Customer Feedback
• Designed For Full-Time RVing
• Brinkley Automotive Exterior Seals Package
• Low-Maintenance Roof
• Developed by Campers with Customer Feedback
• Basement Utility Access w/ Removable Sliding Doors & Motion Activated Lights
• Automotive-Style Riveted Wheel Skirts & Panels
• Laminated Exterior Walls w/ High-Gloss Gel Coat Fiberglass & Azdel
• Reinforced & Walkable Slide-Out Roofs
• Thermaflex® No Kink No Tear Heat Ducts
• Pre-Engineered & Assembled Wiring Harnesses, Loomed, Labeled, & Color Coded for Easy Serviceability (Segment-First)
• Water Shutoff Valve on ALL Fixtures
• Brass Plumbing Fittings (Segment First)
• Industry Best Insulation Package:
  • R40 Roof, R9 Walls, R40 Floor Insulation
  • Double Insulated Roof, Front Cap, & Main Floor
  • Heated & Enclosed Underbelly (Circulated)
  • Insulated Slide-Out Floors
• Every Coach Every Time - Industry Leading Pre-Delivery Tests & Inspection Process:
  • Industry Leading 350+ Point Inspection & Testing Process
  • Off-Road Simulation Tested (Industries Exclusive)
  • Complete Unit Pressure Test (Seals, Gaskets, Slide-Out, Etc.)

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.
