Canyon Star 3947 | Motor Home Class A - Diesel - Toy Hauler

Sleeps	6
Slides	2
Length	39 ft 11 in
Ext Width	8 ft 6 in
Ext Height	12 ft 11 in
Int Height	7 ft
Interior Color	Capilano, Excelsior, Sherbrooke
Exterior Color	Captiva, Garnet, Windswept
Hitch Weight	6000 lbs
GVWR	32000 lbs
Dry Weight	25950 lbs
Cargo Capacity	6050 lbs
Fresh Water Capacity	75 gals
Grey Water Capacity	60 gals
Black Water Capacity	40 gals
Tire Size	275/80R 22.5
Furnace BTU	35000 btu
Generator	8 kW Cummins Onan® Quiet Series
Fuel Type	Diesel
Engine	Cummins B6.7
Chassis	Freightliner
Horsepower	340 hp
Fuel Capacity	80 gals
Wheelbase	274 in
Available Beds	Queen
Torque	700 ft-lb
Refrigerator Type	Norcold
Refrigerator Size	10 cu ft
Convection Cooking	Yes
Cooktop Burners	3
Shower Size	40" x 30"
Number of Awnings	1
Axle Weight Front	12000 lbs
Axle Weight Rear	20000 lbs
Garage Size	10 ft
LP Tank Capacity	25 gal.
Water Heater Type	On Demand
AC BTU	27000 btu
TV Info	LR Samsung LED TV, BR Samsung LED TV
Awning Info	Apex Dual Stage Armless with Strip Lighting
Washer/Dryer Available	Yes
Gross Combined Weight	33000 lbs
Shower Type	Standard
Electrical Service	50 amp

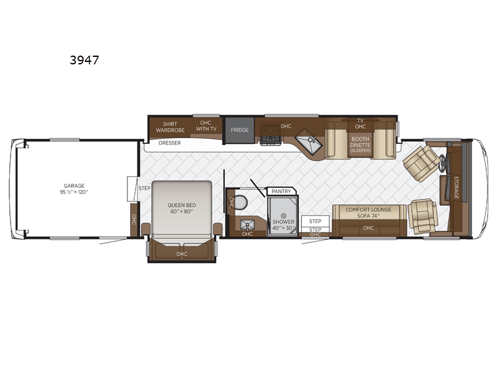

Newmar Canyon Star Class A diesel toy hauler motorhome 3947 highlights:

• 10' Garage with Rear Ramp Access
• Comfort Lounge Sofa
• Shirt Wardrobe
• Queen Bed Slide Out
• Booth Dinette

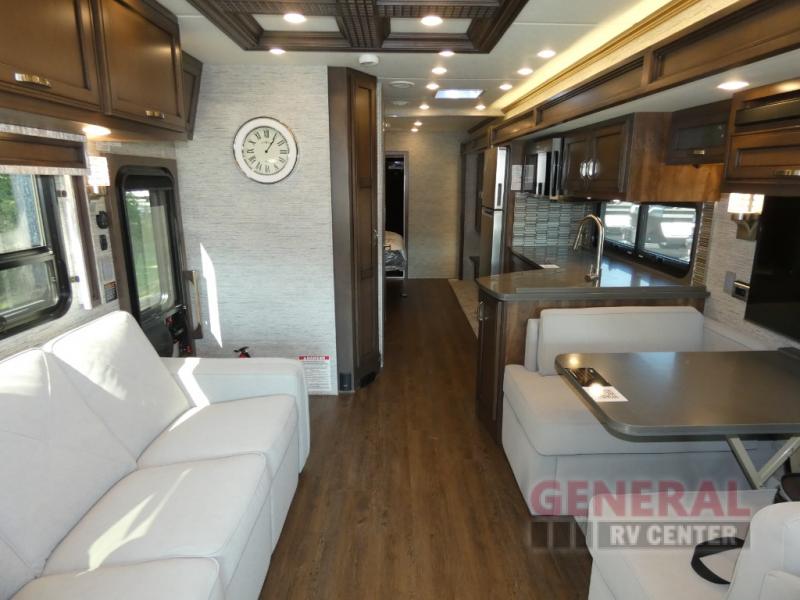

The Newmar Canyon Star Class A diesel toy hauler has room for plenty of toys! The 10' garage with rear ramp access is designed for ATV & normal clearance motorcycles, and can also be accessed by a side entrance door. You can organize your toys with the tie-down tracks and you won't have to worry about scuffs with the diamond tread rubber flooring. The living area has a comfort lounge sofa and a booth dinette which can both be converted to sleeping space, and the full-wall slide here will open up your whole coach. You'll sleep comfortably in the private bedroom which has a queen bed, wardrobe with a dresser, and an overhead console with a TV.



With any Canyon Star Class A diesel toy hauler motorhome by Newmar, you will enjoy a Freightliner front engine diesel chassis with 340HP to power your trips. The garage has so many features that will make your trip easier, like a fueling station, ramp door, assist handle, and even prep for an optional washer/dryer. There's also a rear hitch for towing your car. In the garage you can also add optional electric lift bunk beds or a pedestal table with seating if you need extra room for guests. Keep everything going with the four 12 volt house batteries, 1200 watt pure sine inverter, and a 10 watt solar panel to charge it all. There's also an 8 kW Cummins Onan Quiet Series Generator for your power needs. You'll appreciate the on demand water system, and you'll be extra comfortable with the propane gas furnace with ducted heat plus dash heater and air conditioner.
